SPECIFICATIONS

APP: TTLock

Brand Name: XPOTECH

Card Capacity: 1000

Code Capacity: 100

Communication: Bluetooth

Face Capacity: 100

Fingerprint Capacity: 100

Material: Metal

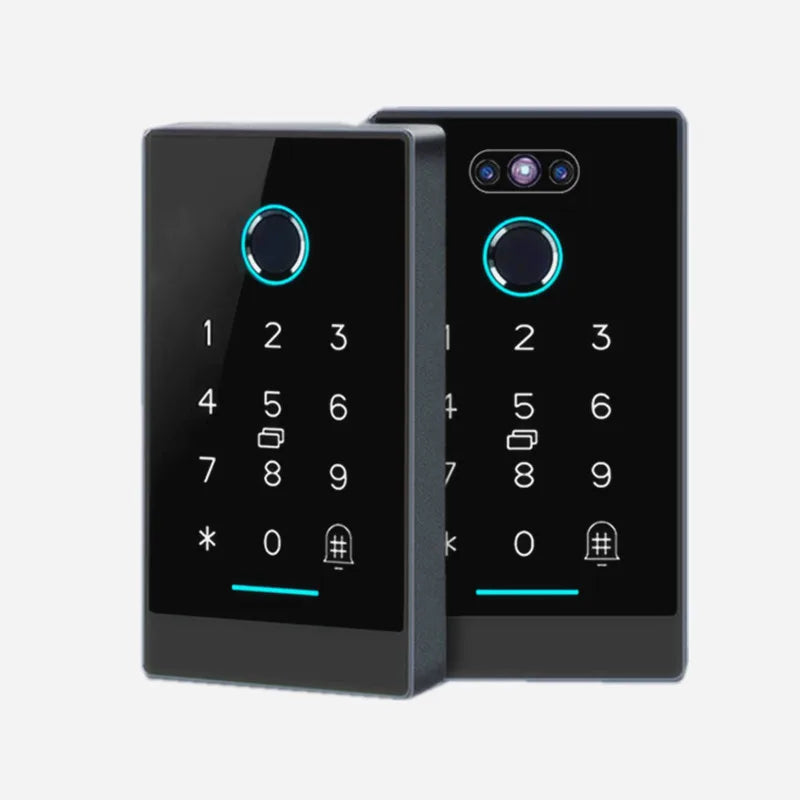

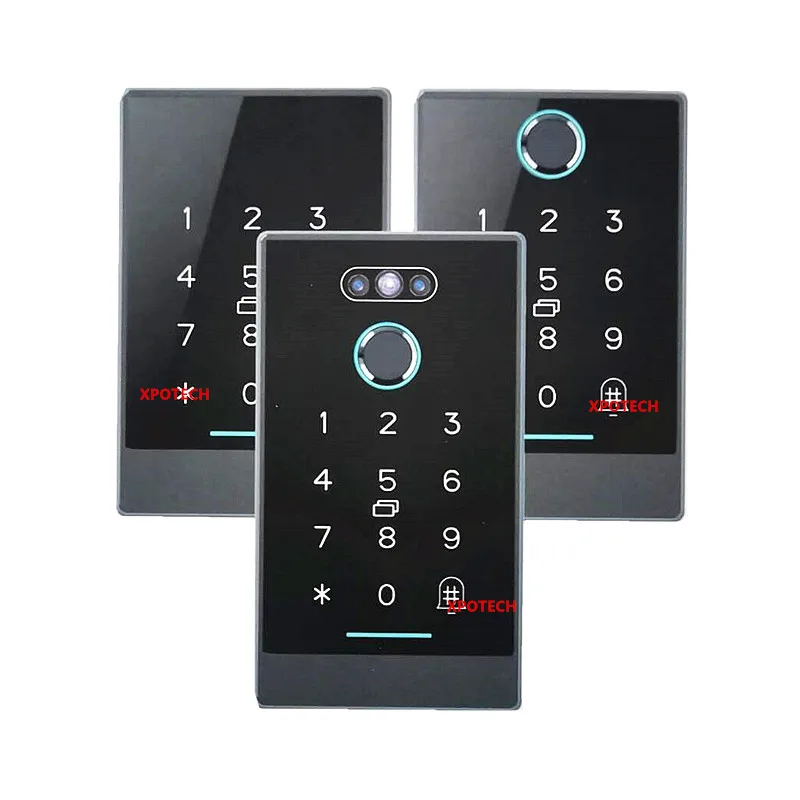

Model: H3/H3F/3D

Model Number: H3D

OS: Android and IOS

Place of Origin: Guangdong, China

Special Features: Touch Screen

Type: Card,Key,Smartphone

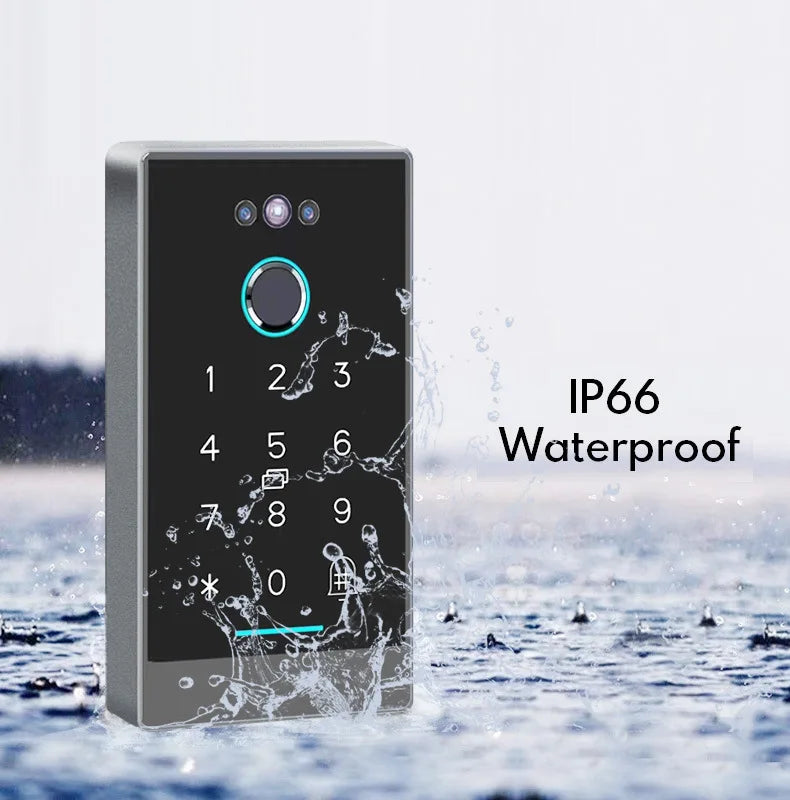

Waterproof: IP66

Products Description

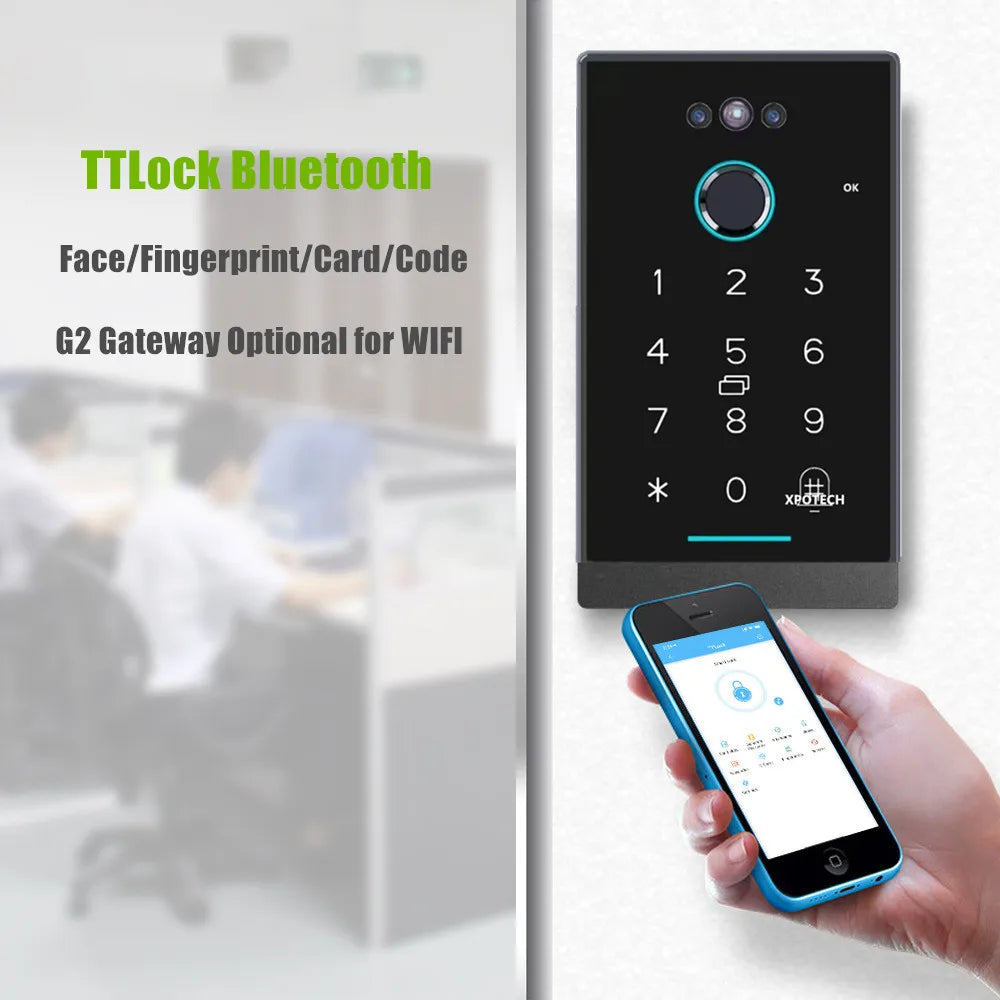

H3D is the latest Bluetooth Enabled Door Access and Entry Control System Provides Access by Using your smartphone bluetooth connection.

It is with metal case and waterproof, the identification ways include face, fingerprint, IC card, password and smartphone unlock doors/gates.

The user can also remotely unlock doors by sending E-keys to vistors or friends. Once your friends or vistors install the APP, then they can accept the E-keys and unlock doors.

The unlock records can be tracked by user in real-time.

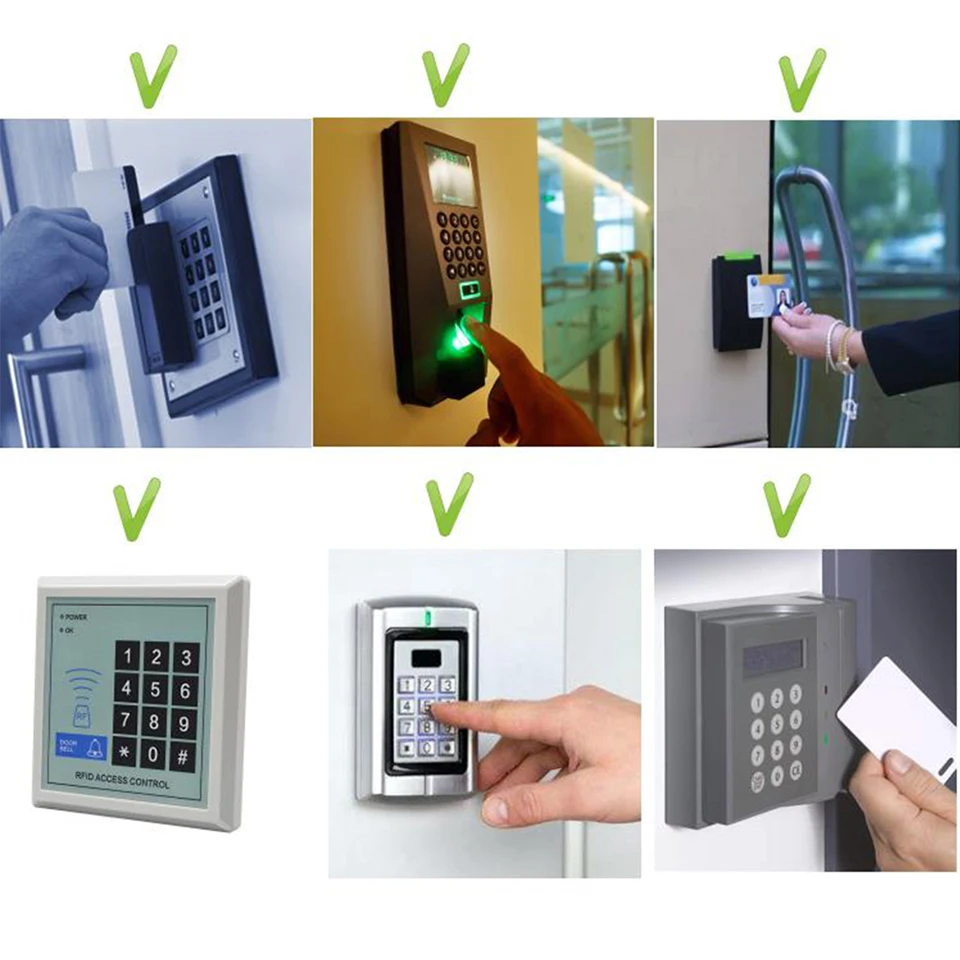

Bluetooth access control reader is very easy to install. These are short range units that allows you to unlock your door as you walk near it (using an app).Your phone is your key. Simply pair your phone with the smart access control.

Product Paramenters

Communication	Bluetooth default ; WIFI optional ( need gateway)
SDK	Free Cloud HTTP interface, APP SDK, applet plugin, React Native component
Unlock Ways	Bluetooth ekey, Fingerprint, IC card, Password

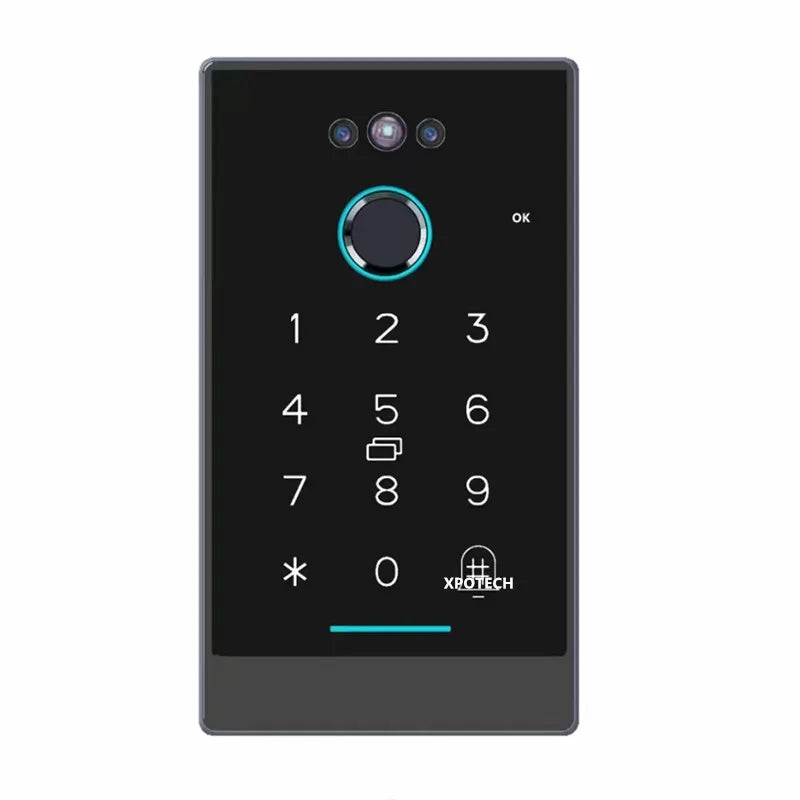

Face Capacity	100 (H3D only)

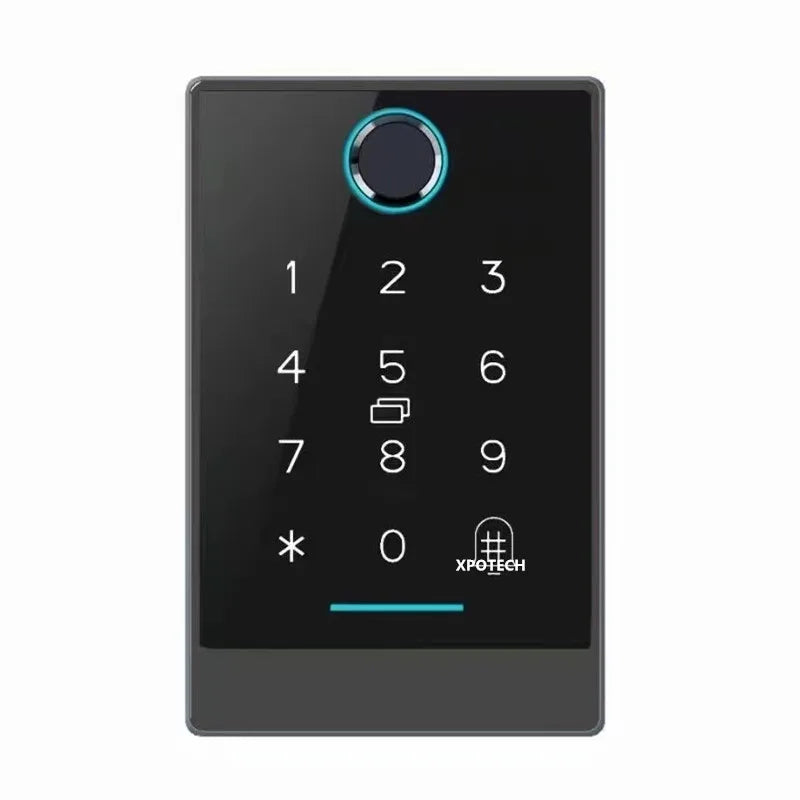

Fingerprint	100 (H3F and H3D)

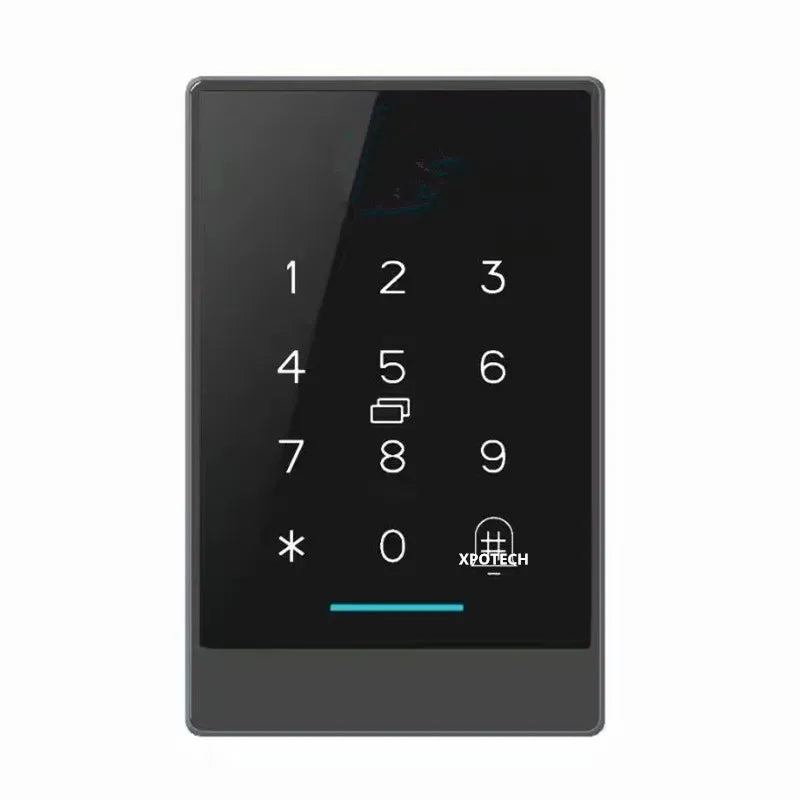

IC Card	1,000 (H3, H3F and H3D)
Password	One-time password; Timed password; Permanent password; Cyclic password; Customize Password (100pcs)
Material	Aluminum frame/Tempered glass panel
Standby Current	15mA
Operate Current	1A
Voltage	DC12V
Unlock Time	1.5 seconds
Waterproof Level	IP66
Firmware upgrade	Android ,Apple(IOS) , Web 3 versions software
Issue guest cards	One app controls all locks in different hotel branches; need gateway
Time Attendance	App can be used as time attendance
APP Languages	English, Spanish, France, Russia, Germany, Portugal, Brazil, Italy, Netherland, Poland, Slovakia, Serbia, Vietnam, Japanese, Korea, Malay, Hebrew

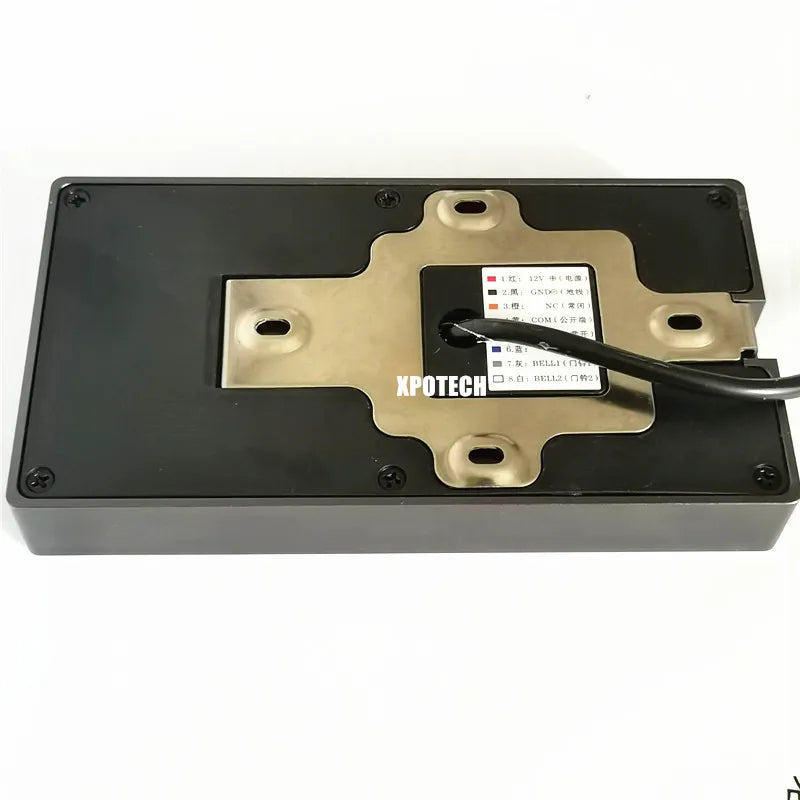

Pin	Note	Color	Explanation
1	12V	Red	Power Connector 12V
2	GND	Black	Power GND
3	NC	Orange	Relay normal close output
4	COM	Yellow	Relay public port
5	NO	Green	reley normal open output
6	SW	Blue	Exit button input, another connect ground
7	IN	Purple	door sensor signal input, another connect ground
8	BELL1	Grey	doorbell connect cable
9	BELL2	White	door bell connect cable

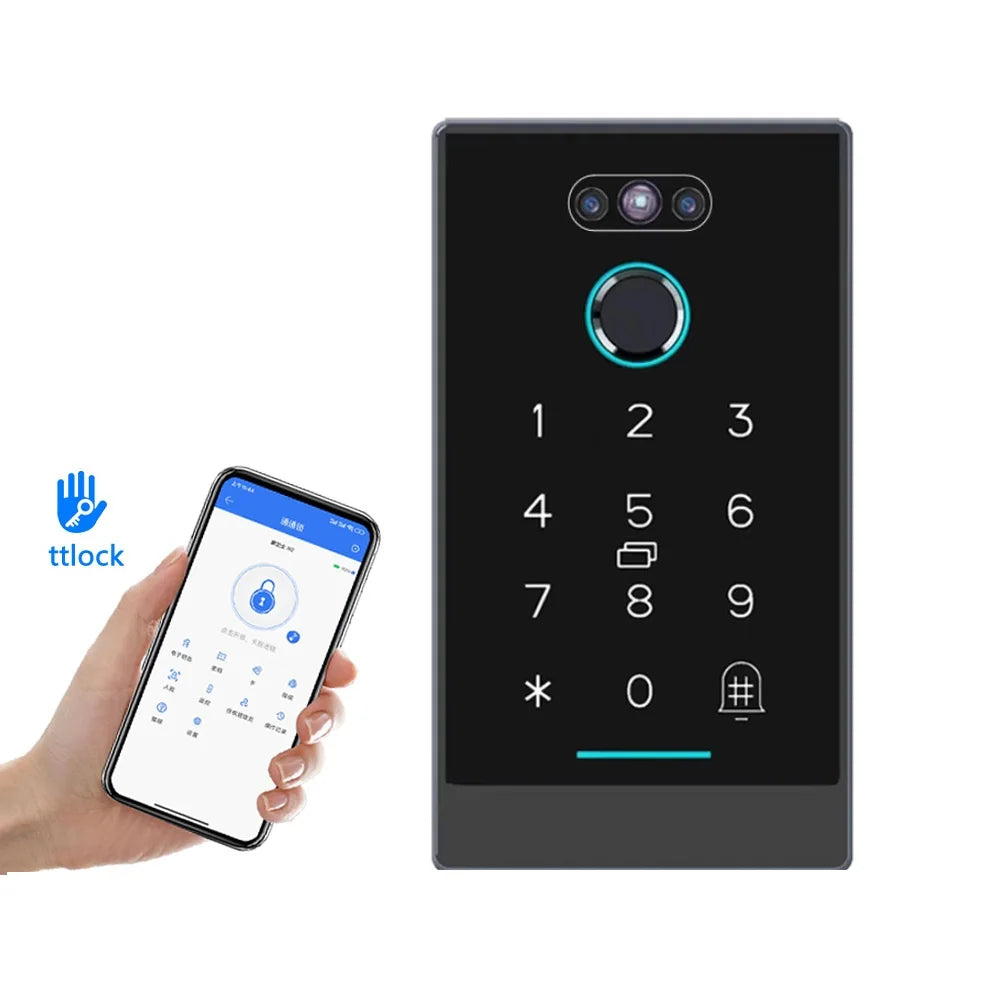

What you can do with our TTLock smart phone app

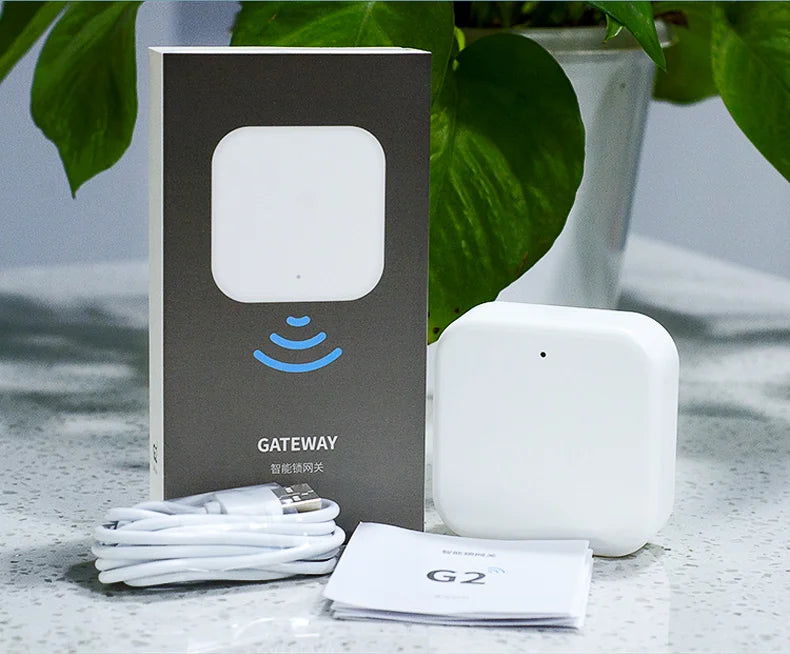

WIFI Gateway Optional for TTLock Bluetooth Lock
