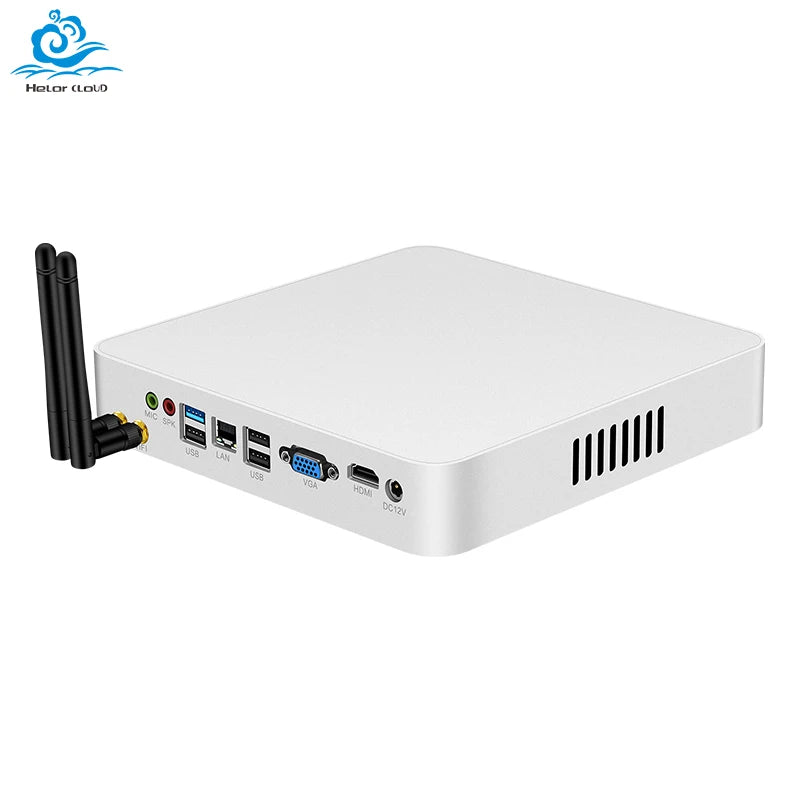

Helorpc Mini PC Intel Core i3 i5 i7 1255U Windows10 WIFI6 RS232 LVDS 64GB DDR4 HTPC Support Windows10 LINUX Computer For Home

$504.00 AUD

~~$0.00 AUD~~ $504.00 AUD

Sale Sold out

Color 2117or1037 6COM Core i5-4200U DDR3 Core i5 3317 2COM Inter N100 DDR4 Core i3-6157U DDR4

Bundle 8G RAM 512G SSD WiFi 8G RAM 256G SSD WiFi 8G RAM 128G SSD WiFi NO RAM NO Storage

SPECIFICATIONS

Audio Chip: Realtek ALC662

Audio Ports: 1x MIC, 1x SPK, 3.5mm jack

Brand Name: Helorpc

Certification: CE,RoHS

Color: Silvery

Cooling System: Built-in cooler fan

Dimension: 197*197*39mm

Ethernet: Realtek RTL 8111H 1000M BaseT LAN

Features: Support Virtualization, ACPI, Auto Power on, Wake up on LAN

Graphics Card Type: Integrated Card

Hard Drive: mSATA SSD

Hard Drive Capacity: 512GB

High-concerned chemical: None

Memory Capacity: 8 GB

Memory Types: SODIMM DDR3L / DDR4

Model Number: X26UL/YT

Origin: Mainland China

PC Box Material: Full Aluminum Alloy

Processor Brand: Intel

Processor Main Frequency: Depend on CPU

Processor Model: N2810,3317U,6157U,4200U,1037U

Type: Mini Desktop,Mini PC

USB: 4USB3.0 2USB 2.0

USB Ports: 2x USB3.0, 4x USB2.0 (1037U all USB are USB2.0)

Use: Household

Video Output: 1x HDMI, 1x VGA

WiFi: 300Mbps

Working Voltage: DC 12V 5A

Processors	Intel Core i5-3317U, 2 cores 4 threads, 3M Cache, 1.70GHz, up to 2.60GHz
	Intel Core i5-4200U, 2 cores 4 threads, 3M Cache, 1.60GHz, up to 2.60GHz
	Intel Core i7-4500U, 2 cores 4 threads, 4M cache,1.80GHz, up to 3.0GHz
	Intel Core i3-6157U, 2 cores 4 threads. 3M Cache, 2.40GHz Intel N100, 4 cores 4 threads, 6M Cache, up to 3.40GHz Intel Celeron N5095, 4 cores 4 threads, 4M Cache, 2.0GHz, up to 2.90GHz
	Intel Celeron J1900, 4 cores 4 threads, 2M Cache, 2.00GHz, up to 2.42GHz
	Intel Celeron 1037U, 2 cores 2 threads, 2 Cache, 1.80GHz
MemoryTyes	i5-3317U /i5-4200U /i7-4500U/ Celeron J1900/celeron 1037U use SODIMM DDR3L 1333/1600MHz
MemoryTyes	i3-6157U/N100/N5095 use SODIMM DDR4
Storage	N100/N5095: M.2 SSD, other CPUs use mSATA SSD
Graphics	Integrated graphics
Network Interfaces	GbE RJ45 Realtek 8111H
Expansion	1x Mini PCI-E slot for WiFi/Bluetooth module ( half height size )
OS Support	J1900/i5-4200U/i7-4500U support Windows 7/win8/win10, Linux/Ubuntu
	i3-6157U support Windows 8.1/10, linux/ubuntu N100/N5095: Support Windows 11/Windows10/Linux/Ubuntu
	i5-3317U /1037U support Windows XP/Win7/8/10, Linux/ubuntu

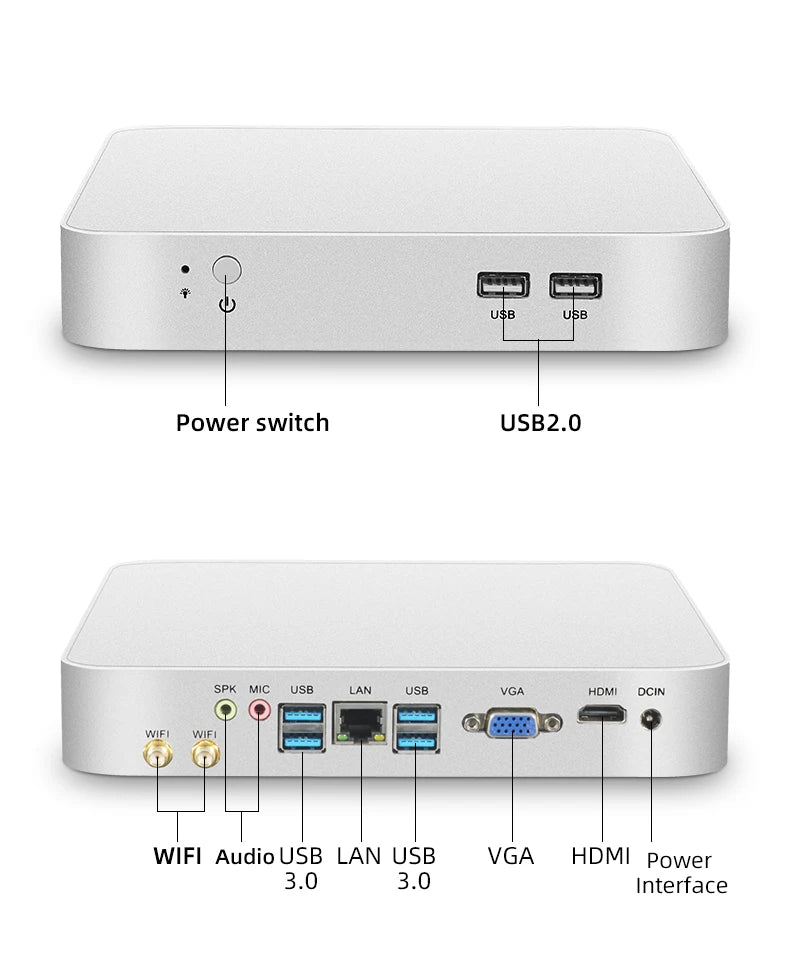

USB Ports	2x USB3.0 ( 1037U all USB ports are USB2.0 )
USB Ports	4x USB2.0

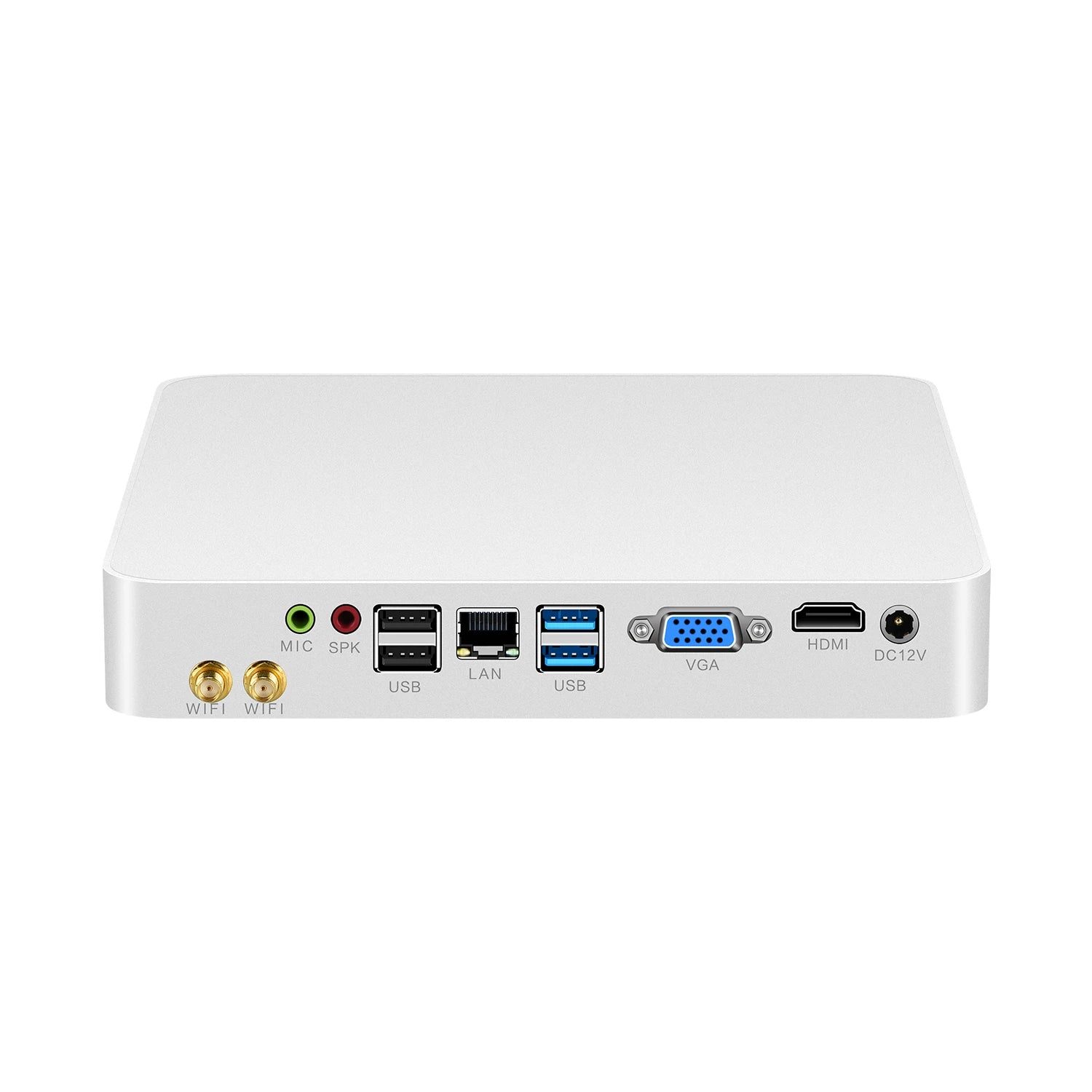

Display Port	1x VGA, 1x HDMI
Features	Support Wake on LAN, WOL, PXE
Features	Support automatically power on when power restored after a sudden power loss
Audio Ports	1x SPK, 1x MIC audio jack
Construction	On-board fan cooling
Case	Aluminum Case
Dimension	197x197x40mm
Netweight	0.8Kg
OperatingTemperature	-20℃to +60℃
RH	5%~90% @30℃，Non-condensing
Power Adapter	Input AC100-240V, Output DC12V-5A
Package List	1x Mini PC
	1x AC Adapter
	1x Power cord ( EU AU US UK type plug shipped according to buyer’s address )
	1x SATA cable
	1x User manual
