Technical Specifications
Computation
CPU : RockChip RV1106G3
Core: Single core ARM Cortex-A7
Memory: 256 MB DDR3L
Storage: 16 GB EMMC

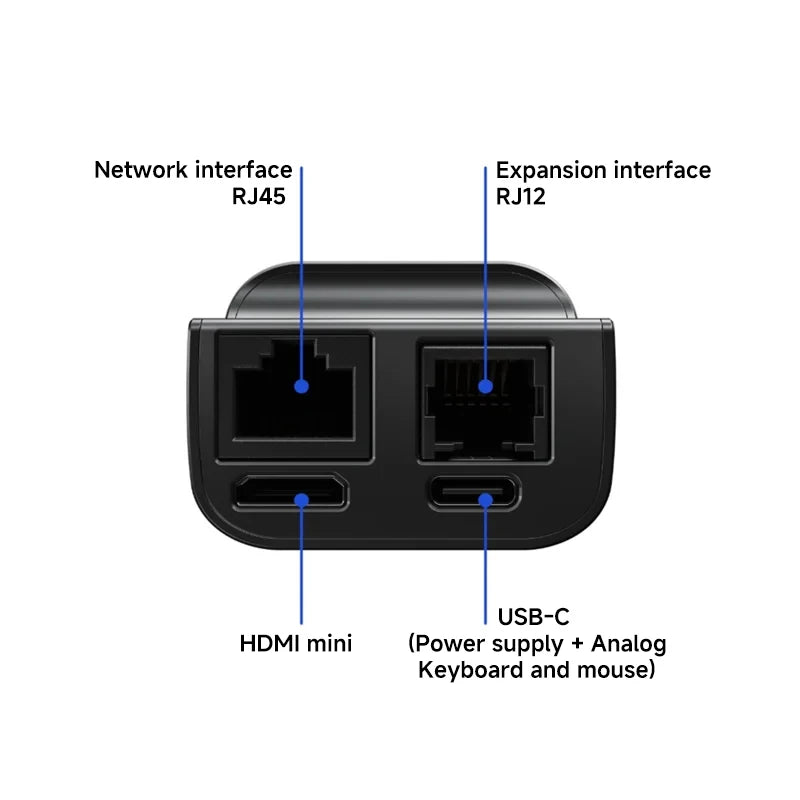

Connections and Expansion
Ethernet: RJ45 (up to 100 Mbps)
USB: USB C (up to 480 Mbit/s)
Video: HD-MI Mini
Expansion: RJ12 Expansion port
Software Stack: Operating System
Linux 5.10 with Buildroot
Dashboard: Javascript, React, Tailwind
Controller： GoLang
Firmware ：C
Electrical and Operating Requirements
Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz, single phase
Operating temperature: 50 to 95 F (10 to 35 C)
Storage temperature: -40 to 116 F (-40 to 47 C)
Relative humidity: 5% to 90% noncondensing
Size and Weight
Height: 31 mm (1.22 inches)
Width: 43 mm (1.69 inches)
Depth: 60 mm (2.3 inches)
Weight: 30 gram (4.79 oz)
