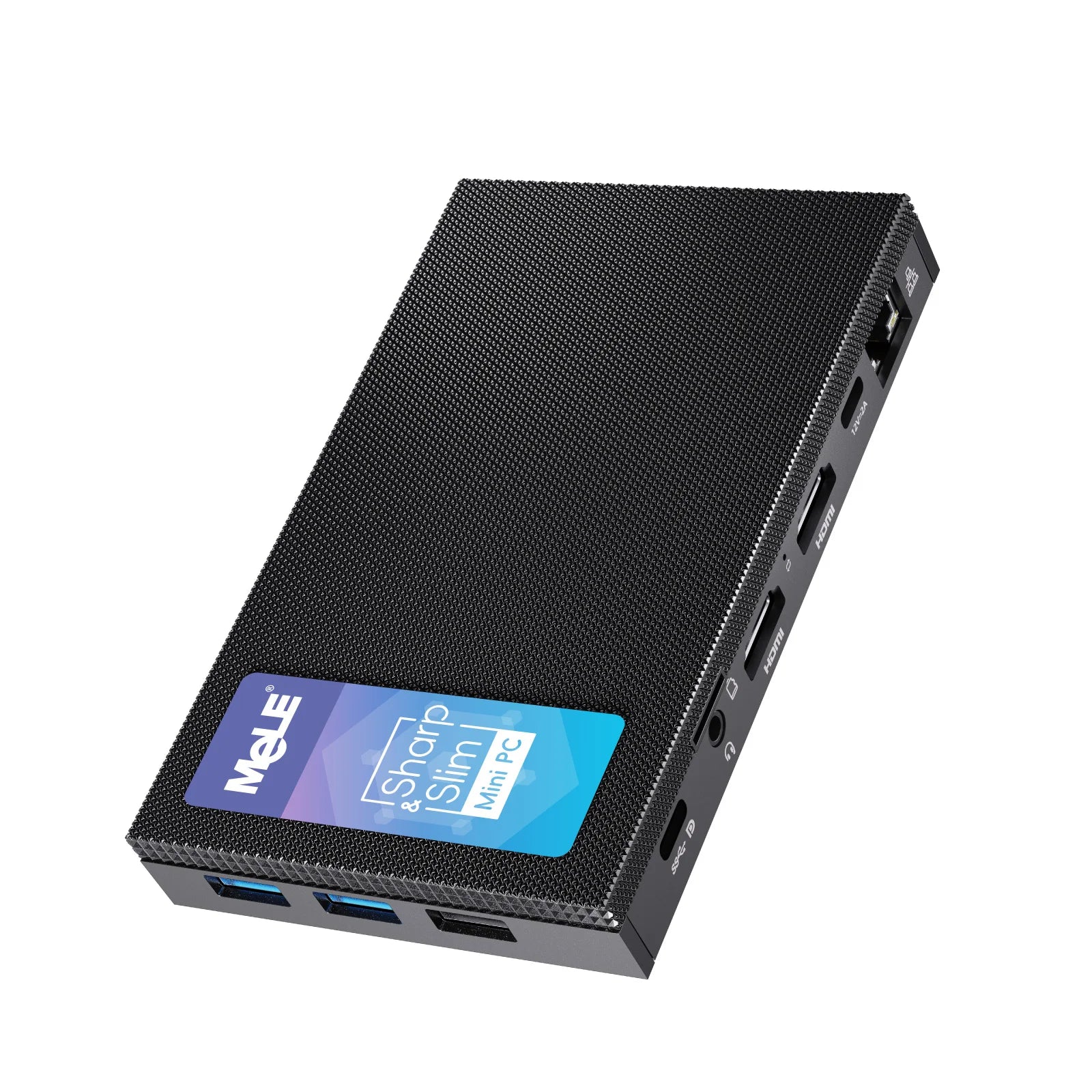

MeLE Fanless Mini PC N100 Micro Desktop Computer LPDDR4X 16GB 512GB 2.4/5G WiFi,Dual HDMI,4K,USB-C,IoT,Quieter4C
MeLE Fanless Mini PC N100 Micro Desktop Computer LPDDR4X 16GB 512GB 2.4/5G WiFi,Dual HDMI,4K,USB-C,IoT,Quieter4C
Couldn't load pickup availability
SPECIFICATIONS
Audio: 3.5mm combo jack
BIOS Settings: Auto Power ON / Wake on LAN / PXE
Brand Name: Mele
Certification: CE,FCC,pse
Commercial: industrial mini pc N100
Fan: mini pc n100 fanless
Full Function USB C: USB Type C(support PD3.0)(Power input,Data Transfer (USB3.2 Gen2=10Gbps),DP1.4)
Graphics Card Type: Integrated Card
HDMI: 2 x HDMI 2.0 (max.4096x2160 4K@60 Hz)
Hard Drive Capacity: 120GB
High-concerned chemical: None
Integrated GPU: UHD Graphics
Memory Capacity: 8 GB
Model Number: Quieter4C
Operating System: OS
Origin: Mainland China
Processor: Intel Processor N100
Processor Brand: Intel
Processor Main Frequency: 3.40 GHz
Processor Model: N100
RAM: 8GB/16GB/32GB
Security: Kingsenton Lock Slot
Storage: 128GB , 256GB ,512GB
Storage Expansion: 1x Micro SD card Slot, 1x M.2 SSD Slot
Thin: Slim Mini Pc
Type: Mini Desktop,Mini PC
USB: 3 x USB
USB Type C: Power input, Data transfer, DP
Use: Multimedia
Wired Connection: 1000Mbps Gigabit Ethernet
Wireless Connection: Wi-Fi5 Dual Band WiFi 2.4+5.0,Bluetooth 5.1GHz
customized: Yes (Min. order: 10pcs)
display: dual hdmi type display
gen: mini pc 12th gen intel
usb type c: mini pc n100 usb type c

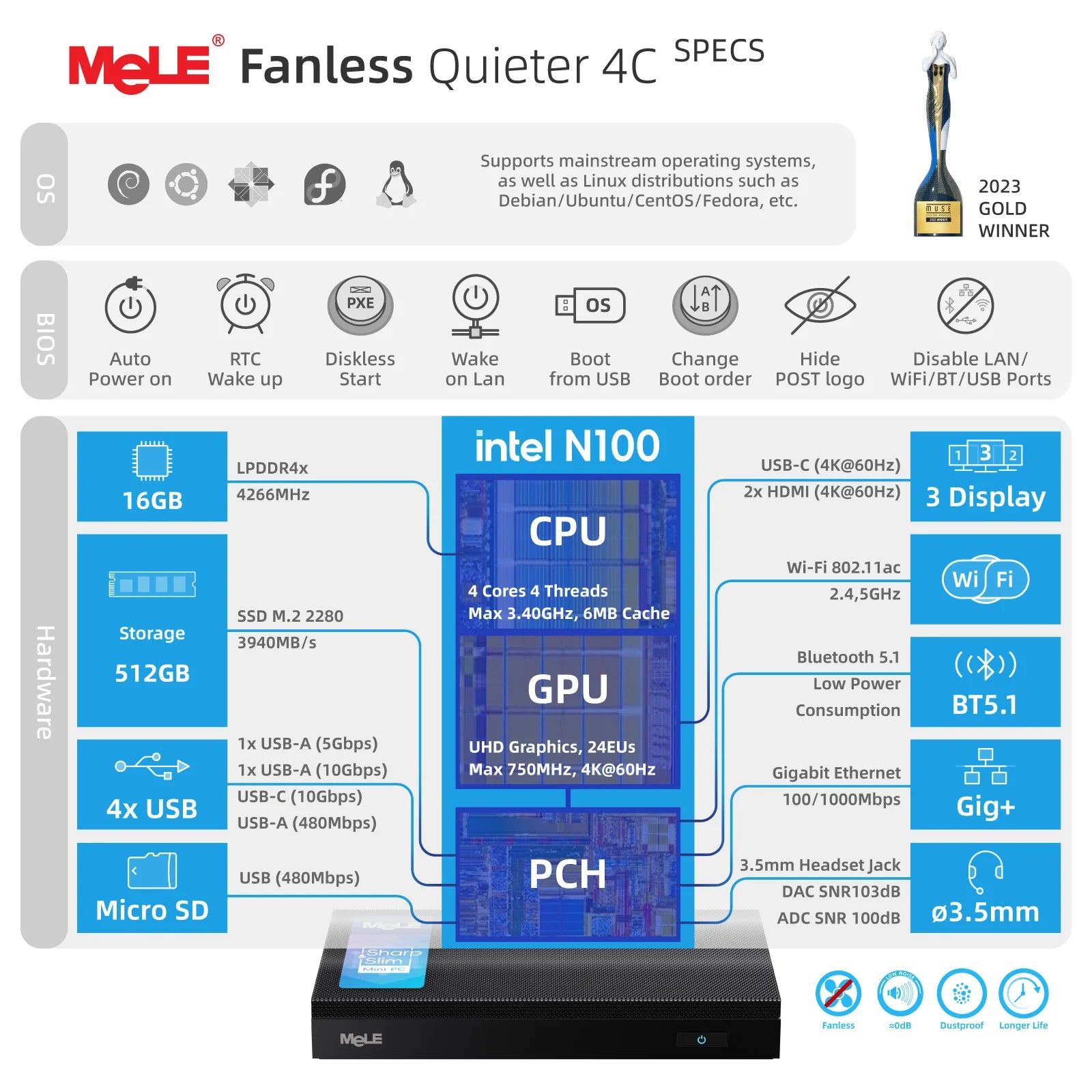

Specification
【 Processor And OS 】
- Intel Alder Lake N100, 4 Cores 4 threads,Max frequency up to 3.4GHz. 7nm process technology.
Intel UHD Graphics
- Operating System: Support Linux, Ubuntu, Debian, etc...
- BIOS: Support Wake on LAN / PXE/ BIOS One-Step Reset/ Auto Power on/ RTC wake up
【 Storage 】
- Memory: 8GB/16GB LPDDR4X
- Storage: 128GB , 256GB , 512GB
- Large Expandable Storage:
Support 1*M.2 2280 SATA SSD NVMe SSD up to 4TB,
M.2 2280 Slot for PCle3.0 x4,max 3940MB/s.
-Support 1*Micro SD up to 2TB.: (SSD and Micro SD Card are not included)

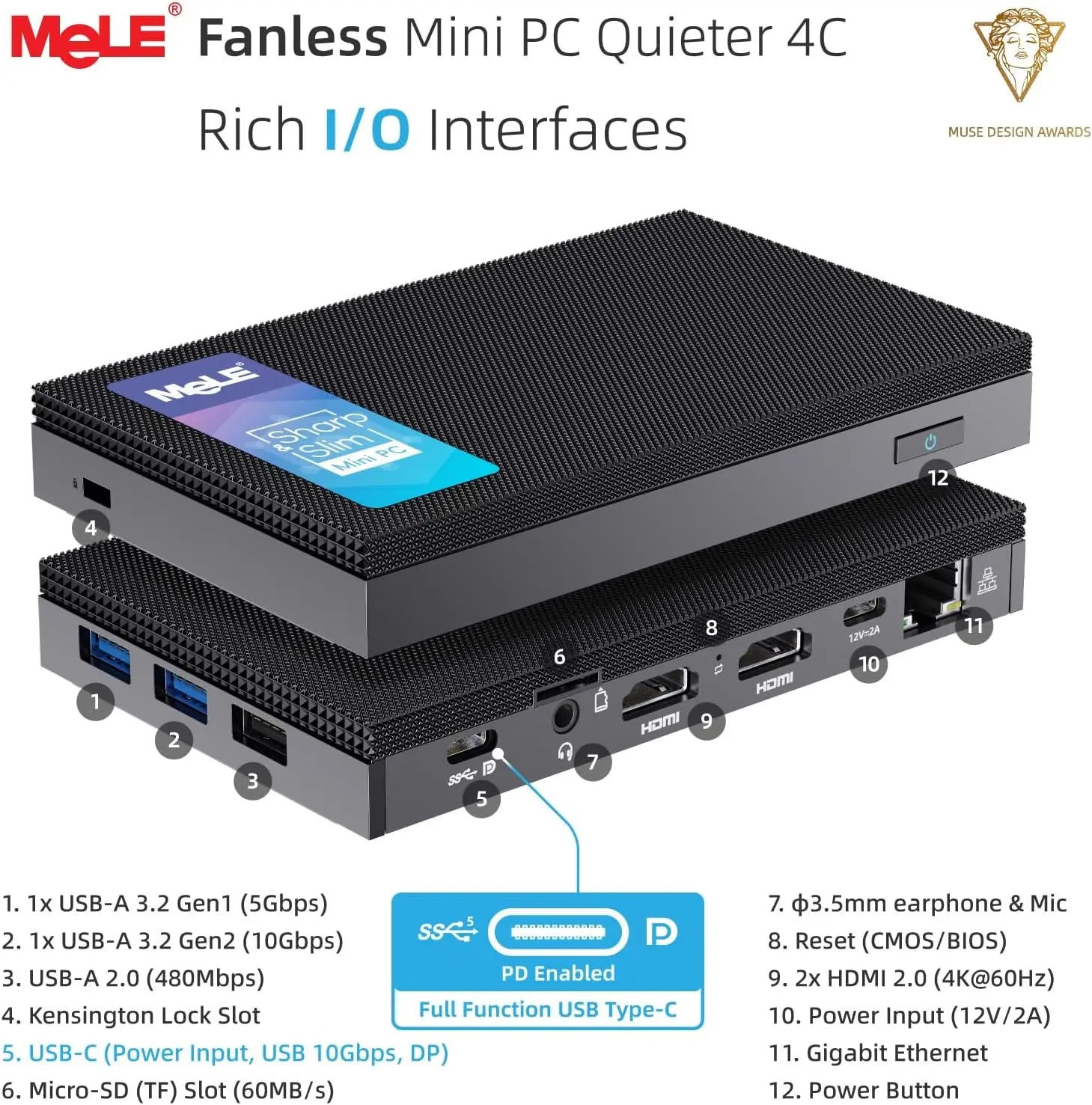

【 Input/Output Specification 】
2x USB3.2 ,1x USB2.0 ,
2x HDMI 2.0 ports, support 4K@60Hz
1x 3.5mm Audio combo jack
1x Micro-SD Card Slot
1x Gigabit Ethernet port
1x Kensington Lock Slot
1x USB Type-C (Power input)
1xFull Function USB Type C (support PD3.0)(Power input,Data Transfer (USB3.2 Gen2=10Gbps),DP1.4)
【 Network and Wireless Connection 】
Support WiFi 5, 2.4Ghz/5Ghz
Product Size 131 x 81 x 18.3mm
Product Weight 203g
Package Includes
1x Mini PC
1x Power Supply with EU/US/UK/AU Type Adapter (Adapters are optional depend on the sales regions)
1x VESA mount
1x User Manual
Warranty
We offer 12-month warranty for the hardware of each product under normal usage excluding deliberate damage, accidents, misuse on the product or damage caused by repairs or upgrades attempted by any unauthorized person.
After-sales Service
1. We offer 7x24 hours online service, please contact with us anytime when you need a support.
2. Please communicate with us if the product has any problem, we will offer you a satisfactory solution including new replacement or refund after confirming the problem.
Feedback & Reviews
1. If you are satisfied with our product and service, please kindly leave a positive feedback.
2. Please contact with us before leaving a negative feedback. We'll do our best to support you and provide a satisfactory solution.
About Tax
1. Our price does not include destination import duties, buyers are fully responsible for the import clearance. Please leave a message when you place the order if you have special requirement.
2. Due to the import clearance problem, if buyer refuse to receive the goods, buyer need to be fully responsible for the delivery cost back and forth.Thank you for you cooperation.
About 4K video display
Hardware decoding will not occupy CPU workload, it supports to smoothly play 4K local content. When we connect mini PC to 4K monitor to play 4K video online, we suggest setting 1080P.
Tips of Quieter4C Mini Computer
1. Can it be powered by power bank? Can it be used with other type-C power supply?
This Mini PC needs stable 12V2A power supply, it must be connected with MeLE original type-C power supply. Please don't power it by the power bank.
3. How to enter into BIOS Setting?
Press the power button and press F7 or Delete continuously to enter select boot device menu -> select Enter Setup and press Enter.
4. How to set Auto power on?
Step 1, Press the power button and press F7 or Delete continuously to enter select boot device menu -> select Enter Setup and press Enter to enter into BIOS Setting menu.
Step 2, Select Chipset -> Common Function -> Power on by auto or Manual-> Select Auto Power on .
Step 3, Then go to Save & Exit -> Save Changes and Exit -> Yes to complete this setting.
5. Can it run Linux Ubuntu?
Yes, it supports Linux Ubuntu OS.
6. Why the 128GB eMMC Storage only displays 114GB storage on computer?
It is because the different matrixing method between PC and HDD/SSD/eMMC.Computer matrixing:1KB=1024Byte，1MB=1024KB，1GB=1024MB.
HDD/SSD/eMMC supplier's matrixing:1KB=1000Byte，1MB=1000KB，1GB=1000MB
7. Why the 4K performance is lagging?
4k displays is affected by many factors, such as net speed, HDMI cable, monitor setting, graphic card, video decoding method, video format and video resolution.Our mini pc adopts integrated graphic, if the 4K video still lags when hardware decoding, your video might need higher processor and delicate graphic card.And we suggest you to lower the resolution to 1080p for video fluency.
