SPECIFICATIONS

APP: Video Link

Aperture: F2.6

Battery: Support Any Type 12V Battery

Brand Name: SZGOING

Cloud storage: support

Customized support: OEM, ODM

Data Storage Options: Cloud,Memory Card

Function: Waterproof / Weatherproof,Wide Angle,Night Vision,Two-Way Audio,Pan-Tilt,Reset

IP Rating: IP66

IR night vison: 30m

Lens: Panoramic

Material: Aluminum Alloy

Memory card: 256GB Each Camera

Model Number: Solar CCTV camera

Pixels: 8MP

Place of Origin: Guangdong, China

Resolution: 8MP/4MP

Sensor: CMOS

Smart night vision: Support

Solar power: 100W

Special Features: Night Vision,Motion Detection,Waterproof / Weatherproof,Pan-Tilt,Two-Way Audio

Style: Solar Camera

Technology: 4G AI Panoramic solar camera

Video Compression Format: H.265

Viewing Angle: 360

Warranty: 1 Year

WiFI: 2.4G 802.11N/G/B

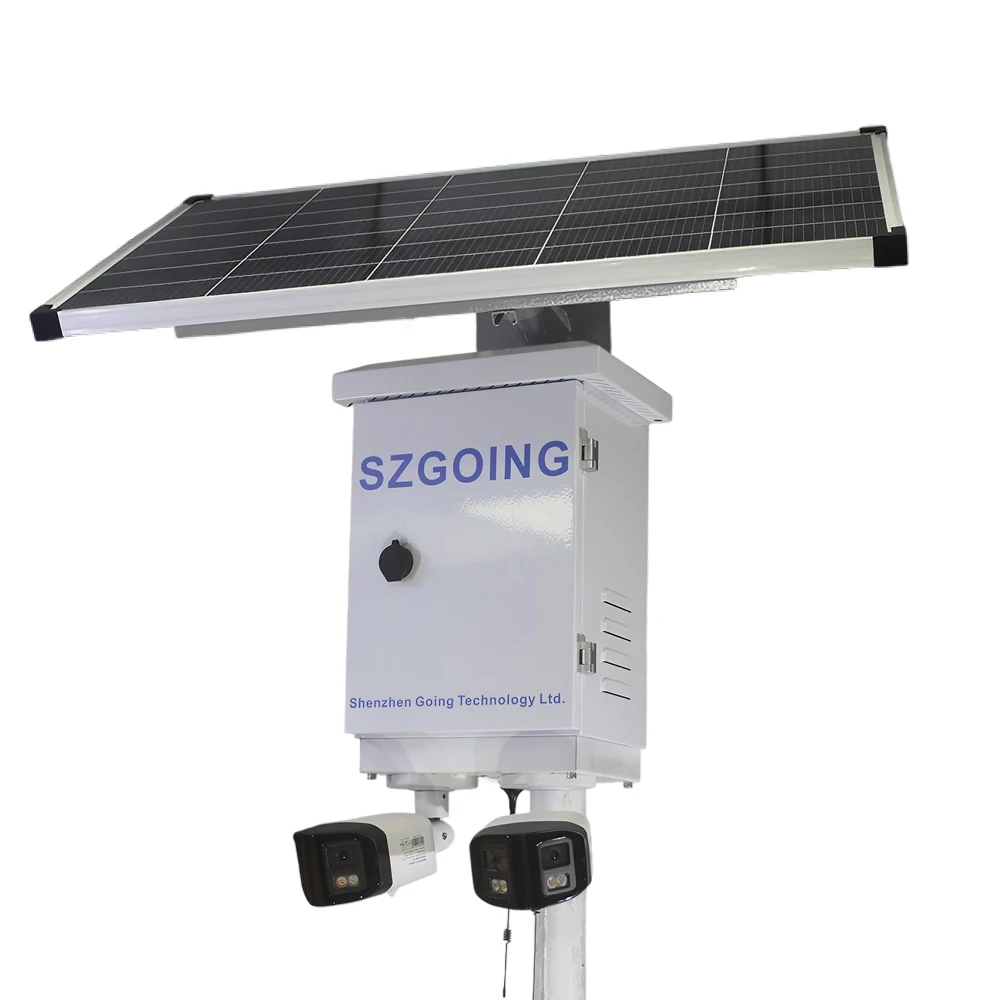

8MP Panoramic Solar Camera

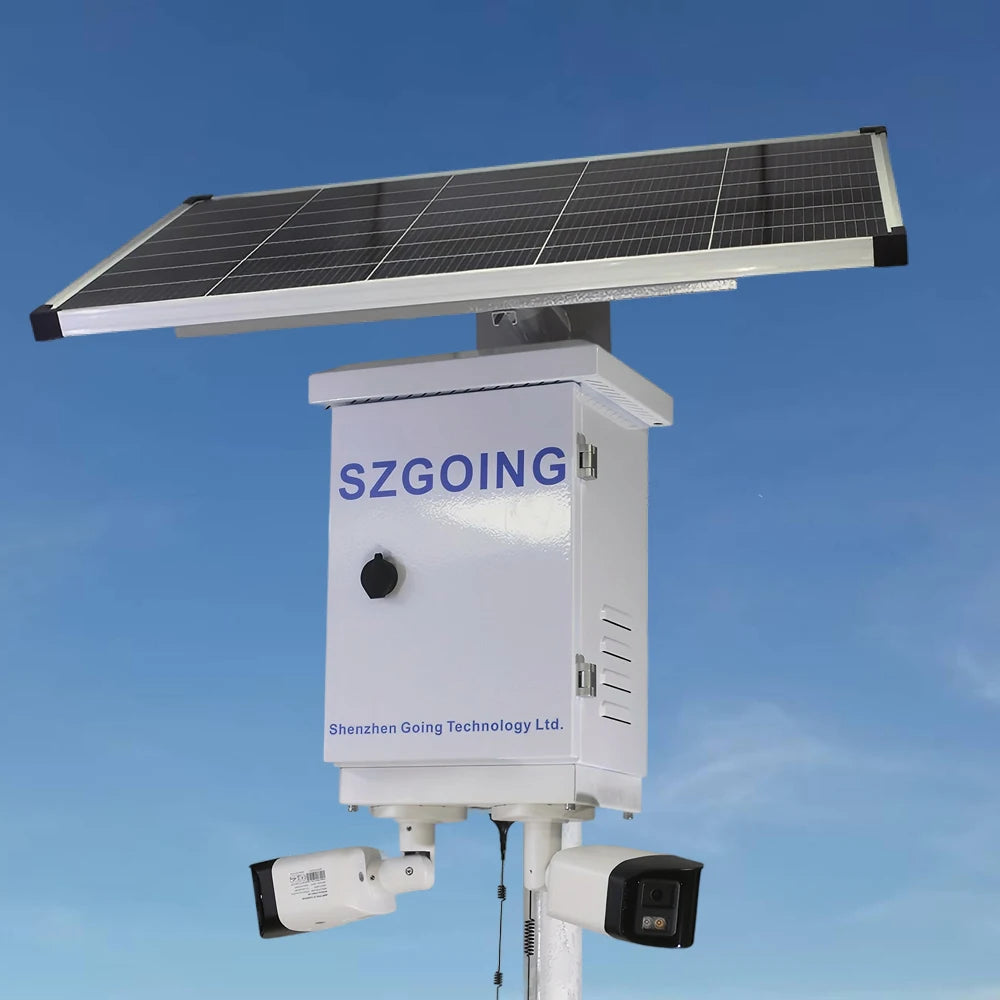

SZGOING Solar Power AI Panoramic Solar Camera

Just Need 1 Sim Card for 2 Cameras

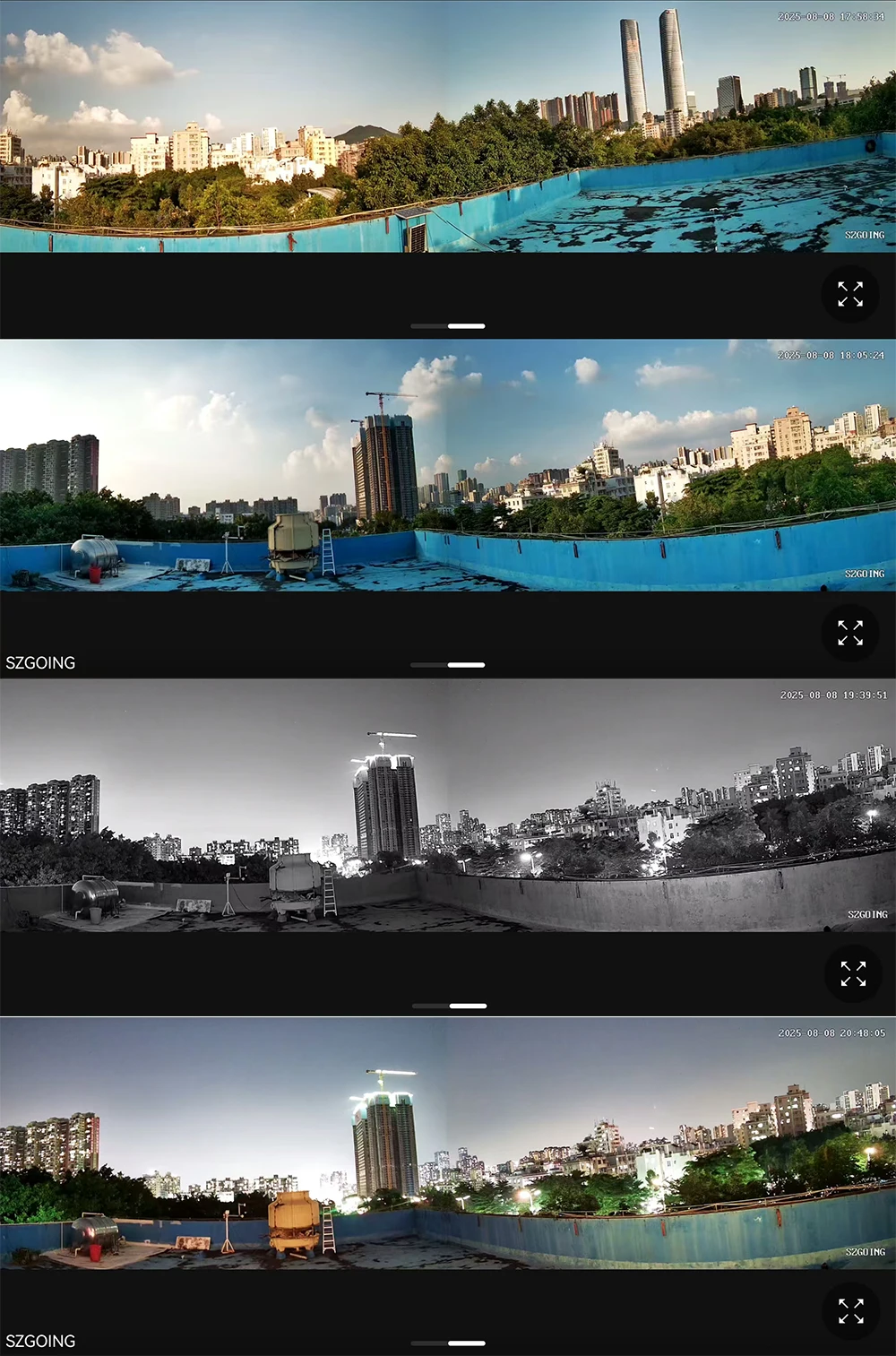

Video Recorded Show

(The video has been converted and compressed, and the actual effect will be better)

Product Description

Model #:

CS100-432P40M-256G(4MP)

CS100-432P80M-256G(8MP)

Price show online is correct,it can be ordered online directly.

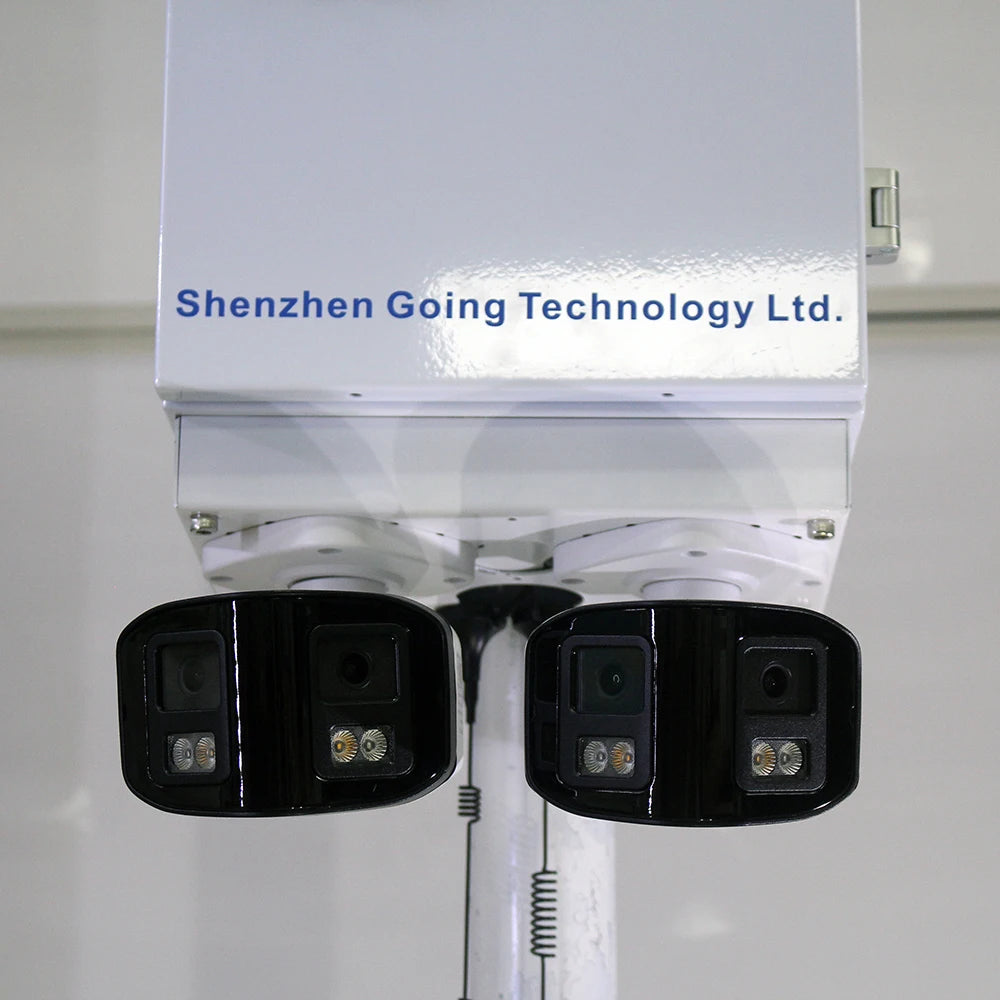

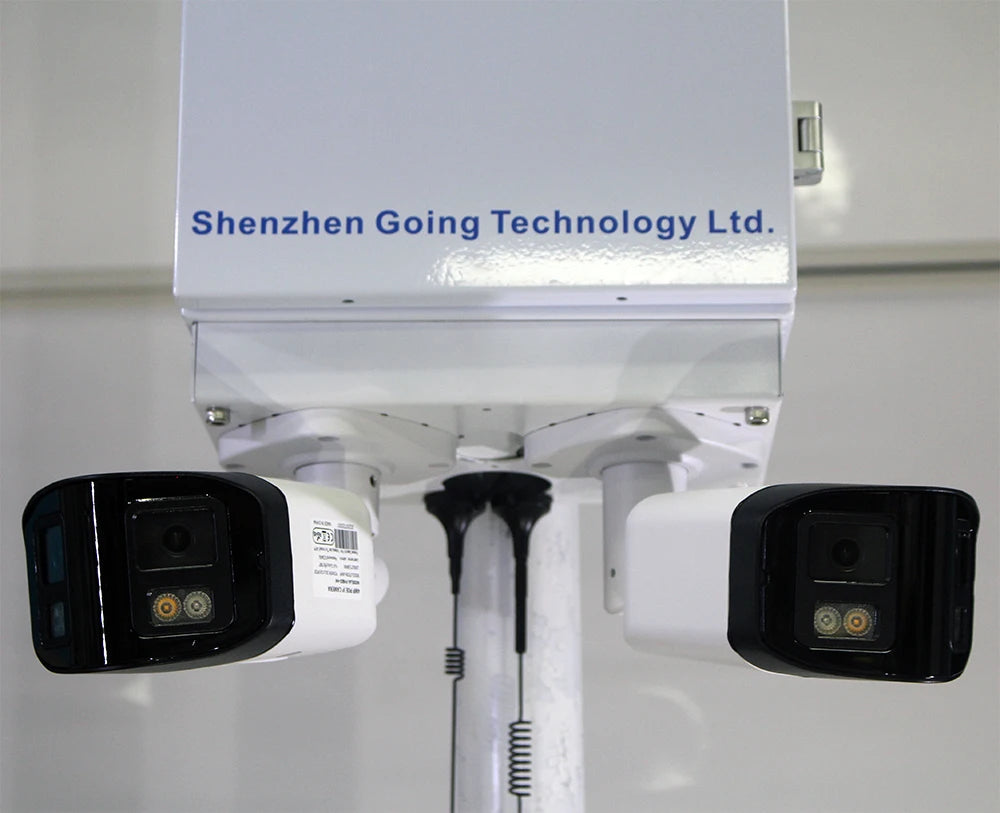

*2pcs 180 degree Panoramic Cameras cover 360 degree.
*256G memory each camera for recording,Support cloud storage.

*It can work at anywhere without power and internet.
*It runs by solar power and support both 4G and WiFi network.

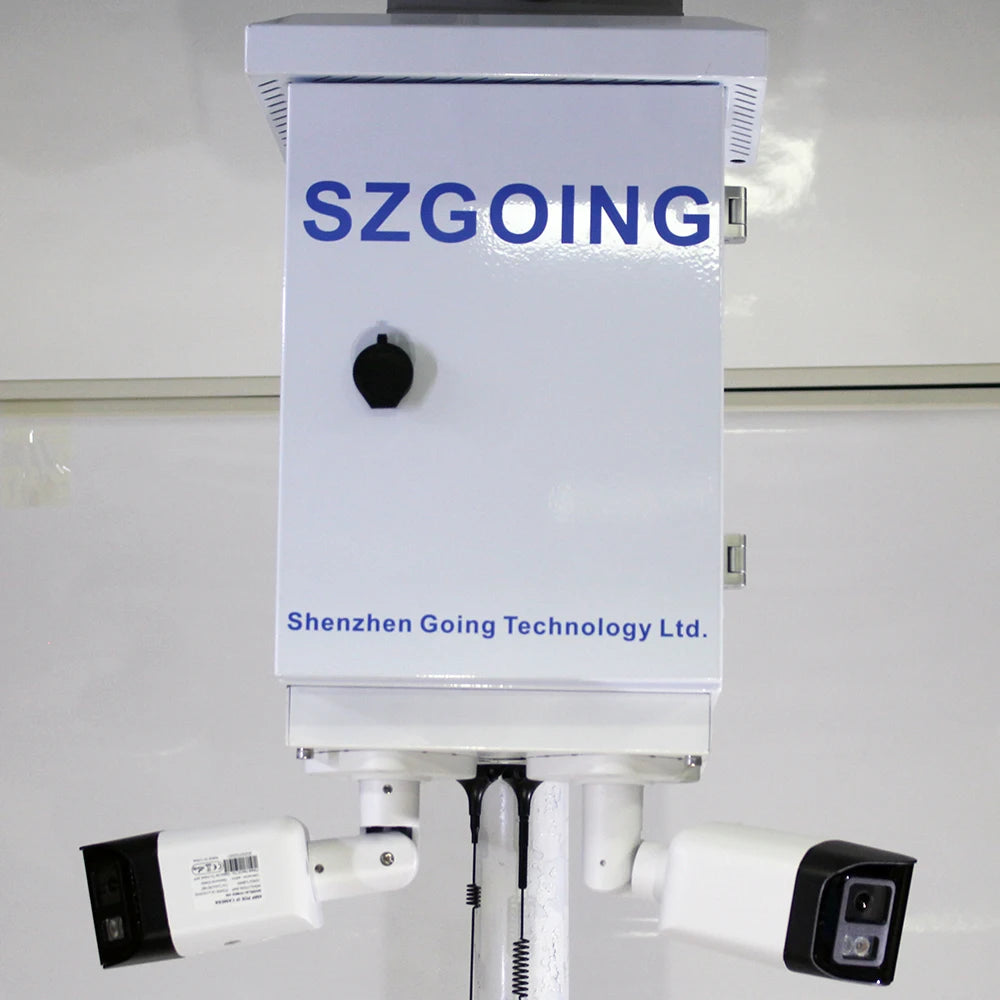

*Aluminium alloy solar bracket,100W solar power system,High quality IP66 equipment box.

Main Parameters:

1.2pcs 8MP/4MP 180 degree Panoramic Cameras cover 360 degree. 2.256GB Memory card for recording each camera. 3.Smart dual light night vison,support full color night vision. 4.Two way Audio 5. Support both 4G and WiFi network.Just need 1 sim card. 6. App:Video Link 7.Free 64ch VMS software for PC 8. 100W solar power system and Aluminium alloy soar bracket,IP66 high quality equipment box. 9.12V 20A Power Control System 10.Support any type 12V battery,Suggest LifePO4 12.8V Battery.

Easy P2P cloud connection.

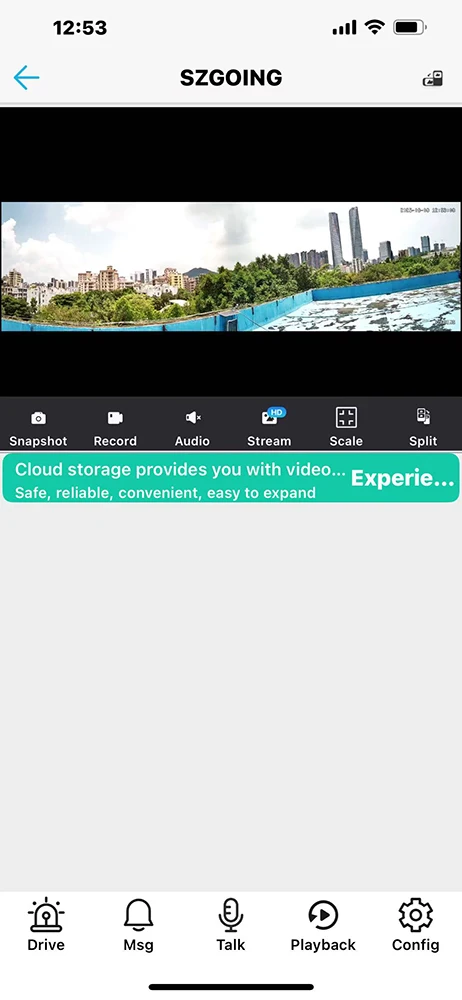

Easy to remotely view and playback on mobile phone or PC..

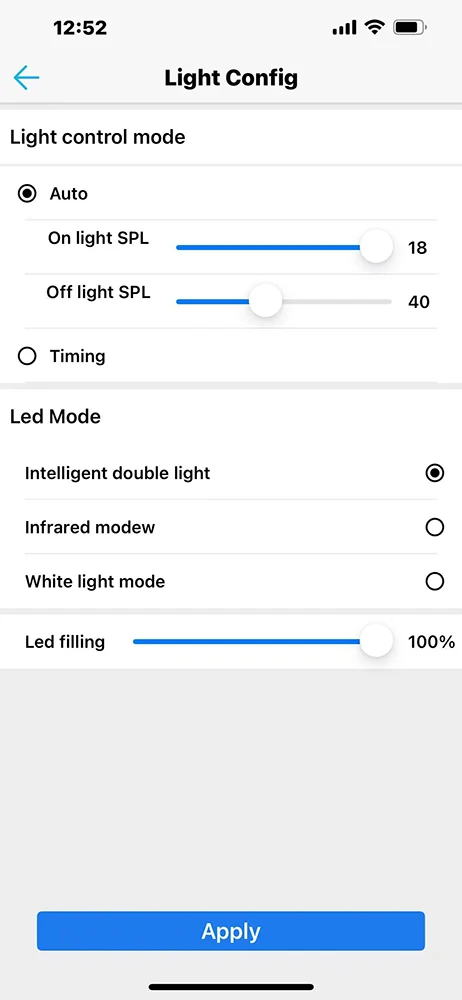

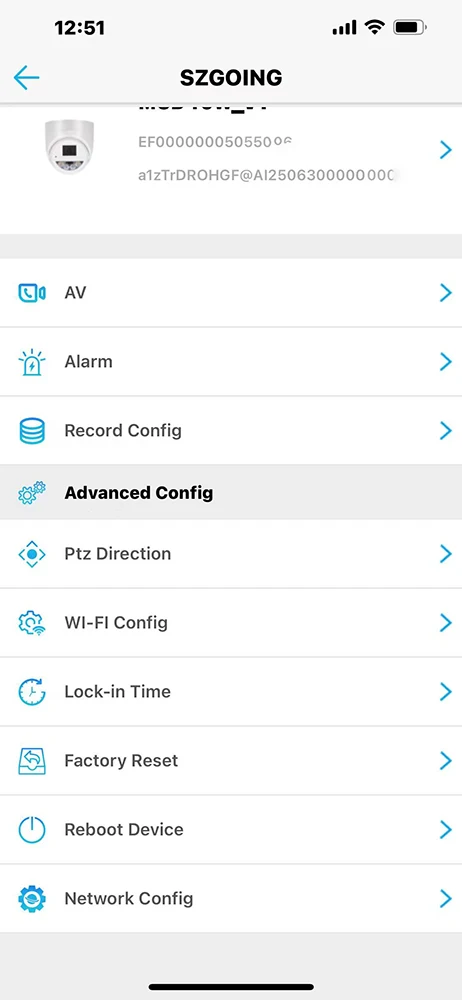

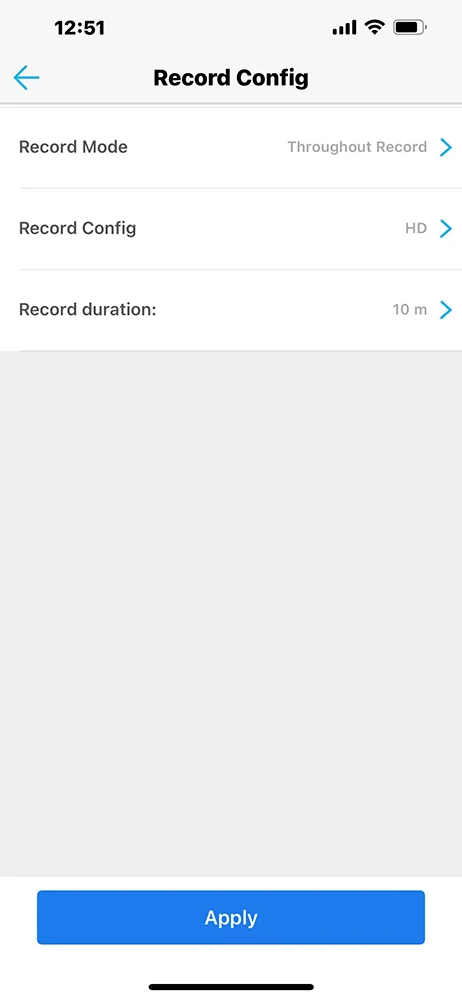

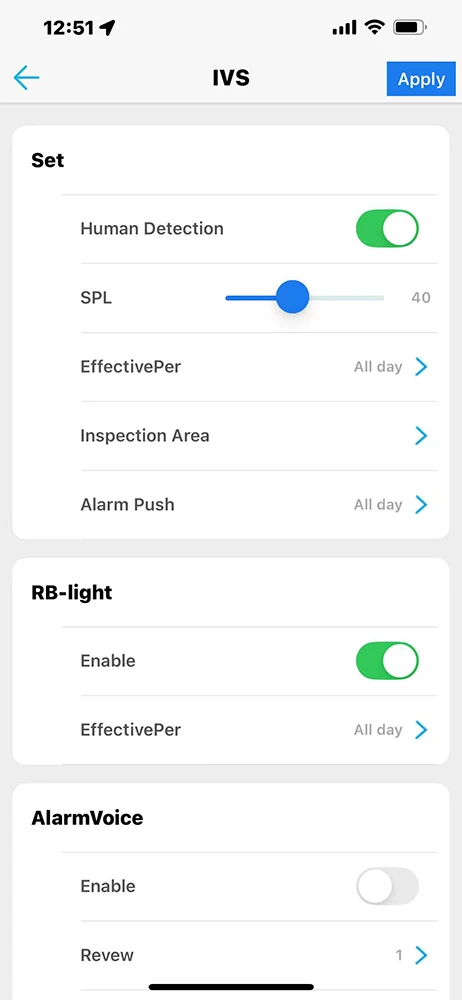

Video Link App

Packing & Delivery

Packing list:(What is included)

1.Panoramic Camera with 256G x2pcs
2.Aluminium alloy solar bracket x1kit
3.100W solar panel x1pcs

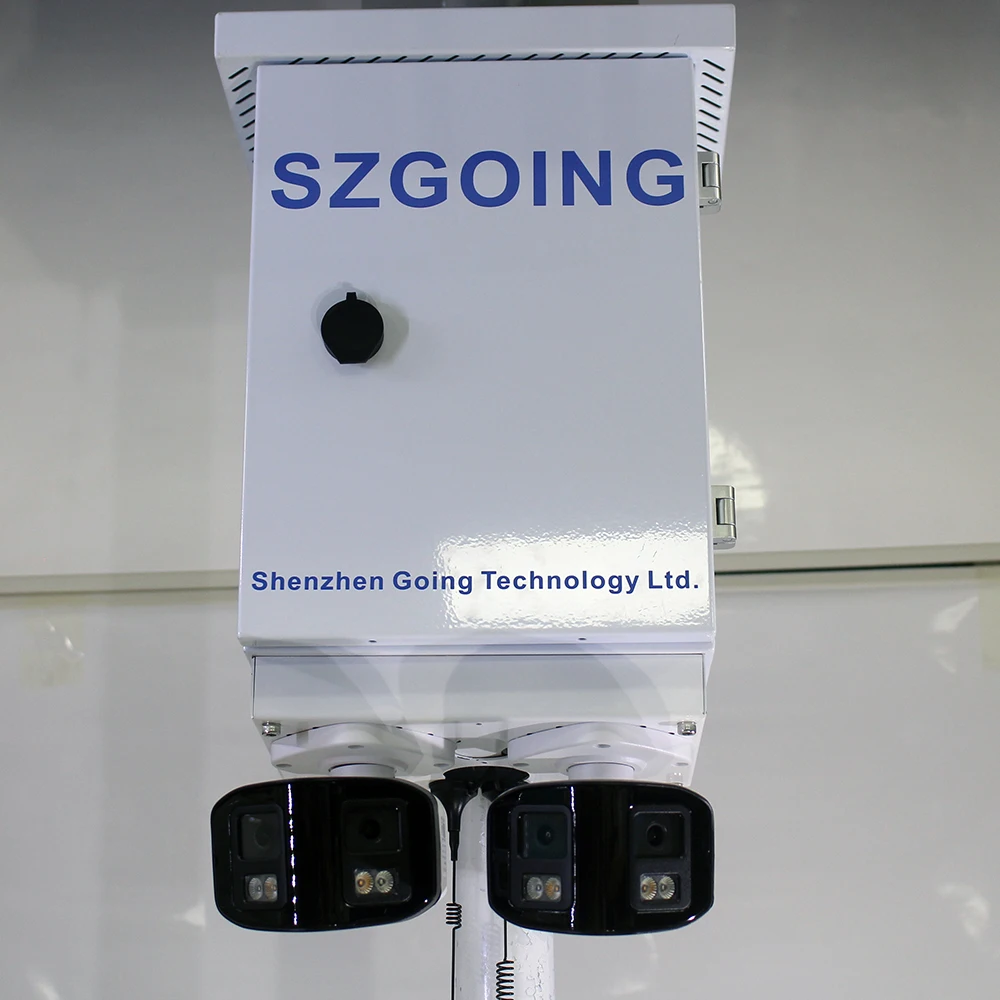

4.Professional IP66 Equipment box x1pcs(Installed Power Control System,Network System)

5.4G antenna x1pcs,WiFi Antenna x1pcs
6.Pole adatper x1kit

7.Install tool x1kit,

Not inclued:
1.Pole
2.Battery

Suggest LifePO4 12.8V 40~50AH Battery

Seller's Shipping Method (DDP)
This is the DDP shipping way Sea/Train+Express door to door We Set,Need 3~4 weeks.

Data Sim Card

We will put a data sim card to sim card slot for most countries,The system got internet ready.It has 100M free data for you to test the system,Lower Cost Data Plan.
You can use your own sim card if you don't like its data plan.

it will auto-select the local best signal operators
*USA:AT&T, T-Mobile
*Europe:KPN, Hutchison 3G UK, 02，E-Plu
*Australia:OPTUS
Some of the network operators it work with

Specification

Model	CS100-432P40M-256G
Compression	H.265+
Camera Resolution	4MP/8MP
Lens	Panoramic 2.8mm+2.8mm
Night vision	30 meters IR range
Memory card	256G each camera
WIFI 2.4G network	IEEE802.11b/g/n/
Camera Housing	Metal+Plastic, Outdoor weatherproof IP66
4G/3G/2GBand support (Nano size sim card slot)	Europe/Asia/Africa: 4G LTE-FDD:B1(2100)/B3(1800)/B7(2600)/B8(900)/B20(800),4G LTE-TDD:B38/B40/B41, 3G WCDPA :B1(2100)/B8(900),2G GSM:900/1800 America :4G,LTE-FDD:B1(2100),B2(1900),B4(1700),B12(700),B13(700),B17(700),3G WCDPA:B1(2100),B2(1900) Australia: FDD:B1(2100)/B3(1800)/B5(850)/B7(2600)/B8(900)/B20(800) ,Optional 700MHZ TDD:B38/B39/B40/B41 GSM(900M/1800M),EVDO(800M),TD_SDCMA(B34/B39) WCDPA:B1/B5/B8
Solar power system	Maximum Power(Pmax):100W Voltage at Pmax(Vmp):18V Current at Pmax(Imp):5.56A Open-Circuit Voltage(Voc):21.6V Short-Circuit Current(Isc):6.11A Size:950mm x 530mm x 30mm Weight:5.6kg Newest 16 lines solar panel
Battery box size	400x300x200mm
Power Control System	12V 20A
Battery	Support 12v Lead Acid battery,18650 Li battery,Lifepo4 battery and other type 12v battery
Solar bracket	Aluminium alloy
App	Video Link
Client software	64CH VMS
Weight	29KGS/Kit
