SPECIFICATIONS

Brand Name: NONE

Certification: CE

Choice: yes

Model Number: W-3301

Origin: Mainland China

Product selling points:

1.Environmentally friendly ABS material, drop and wear-resistant

2. Fast temperature control

3. New temperature display

4. Compact and exquisite appearance, easy to carry

5.. Wide range of applicable scenes

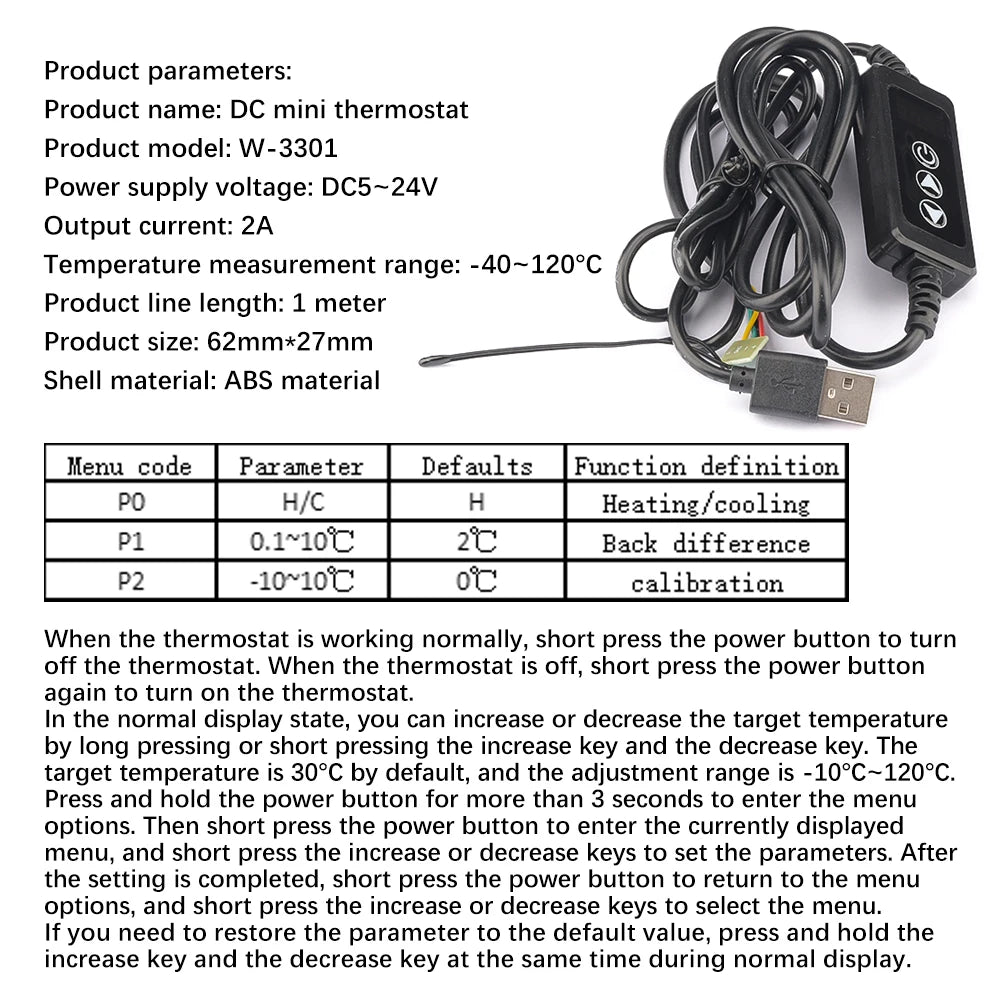

Main Parameters:

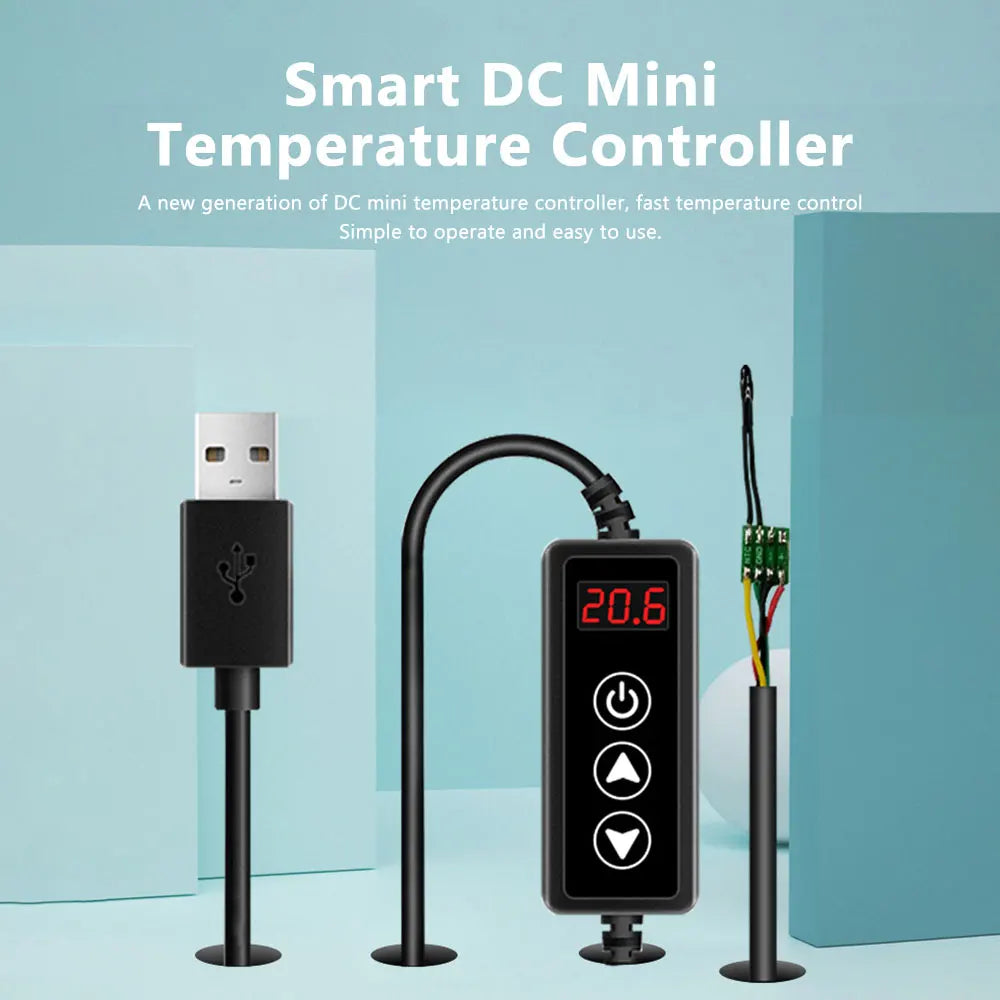

Product Name：DC mini thermostat

Product Model:W-3301

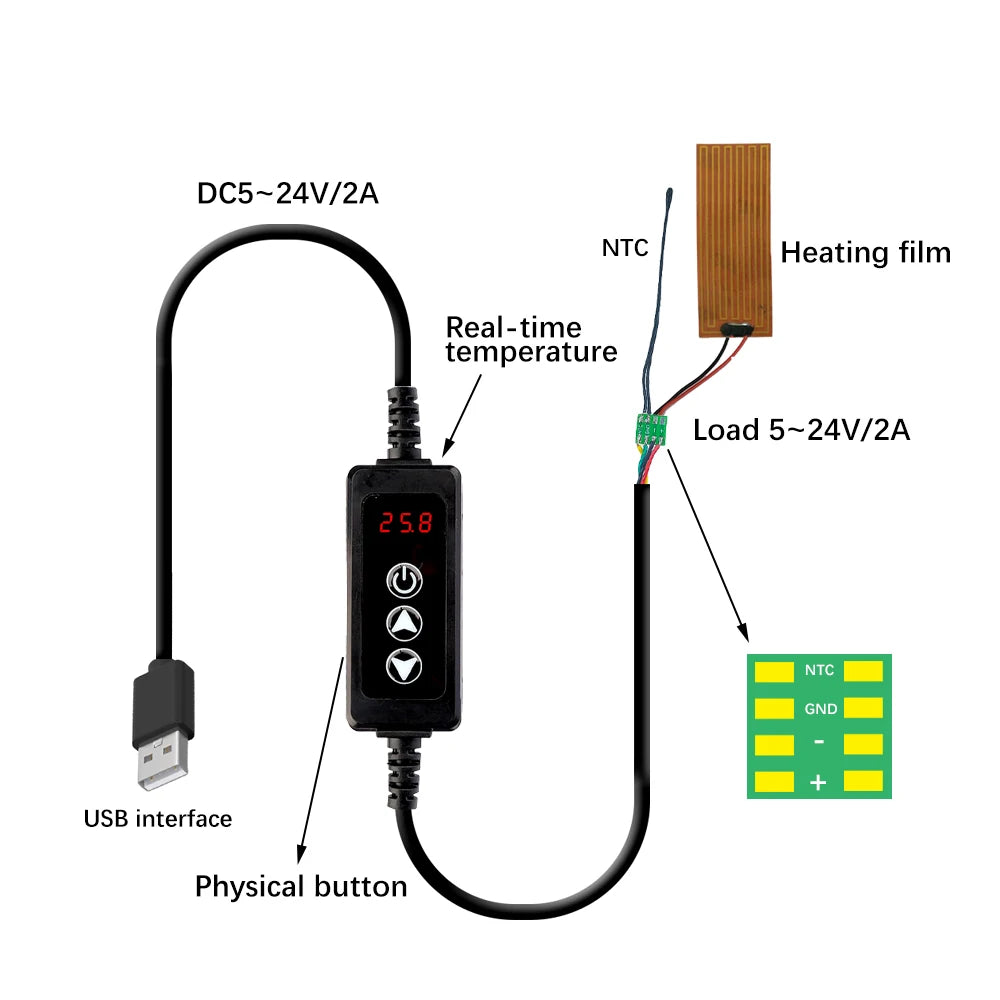

Supply Voltage：DC5~24V

Output current: 2A

Temperature range: -40~120°C

Product line length: 1 metre

Product size: 62mm*27mm

Shell material: ABS material

Work Principle of operation:

When the thermostat is working normally, the digital tube displays the current temperature measurement value.

In cooling mode, when the measured temperature ≥ temperature set value + temperature difference set value, it enters the cooling state.

In heating mode, when the measured temperature ≤ temperature set value - temperature difference set value, it enters the heating state.

Operation instructions:

When the thermostat is working normally, short press the power button, it will close the thermostat, when the thermostat is closed, short press and hold the power button again, it will open the thermostat.

Under normal display state, the target temperature can be increased or decreased by long or short pressing the increase key and decrease key. The target temperature is 30℃ by default and the adjustment range is -10℃~120℃.

Long press the power button for more than 3 seconds to enter the menu options. Then short press the power button to enter the current display menu, set the parameters by short pressing the increase button or decrease button, when the setting is finished, short press the power button to return to the menu option, select the menu by short pressing the increase button or decrease button.

If you need to restore the parameters to the default values, just long press the increase key and decrease key at the same time during normal display.

List:

Mini Thermostat*1
